Nordyne Electric Parts
Including Intertherm and Miller Parts
We no longer have a relationship with a parts store. Following a link on this page will take you to Amazon.com to search for it. It may or may not be available depending on availability. This is the best we can do at this time and we hope it helps.
-
902985 Blower Assembly
$389.00Blower assembly for furnaces with 5 ton a/c units. Assembly includes 903096 3/4hp motor, 667258 11×8 blower wheel, 621377 run cap, housing & plug. Used on E2BH, E2EB, E2EH & E3 electric furnaces.
-
901282 Blower Assembly
$318.99Blower assembly used mostly on FEH, FEHA & FEHB electric furnaces with a 2-4 ton a/c unit. Can also be used on heat-only FEH, FEHA & FEHB furnaces but requires a 901698 control box. Assembly includes a 901838 (620810) motor, 622132 run capacitor, 667037 10×8 blower wheel, housing & plug. Replaces 431890, 434410 & 901288.
-
902993 Blower Assembly
$299.45Blower assembly for furnaces with 2-4 ton a/c units. Used on E2BH, E2EB, E2EH & E3 electric furnaces. Assembly includes 903075 motor, 667037 10×8 blower wheel, 622132 run cap, housing & plug.
-

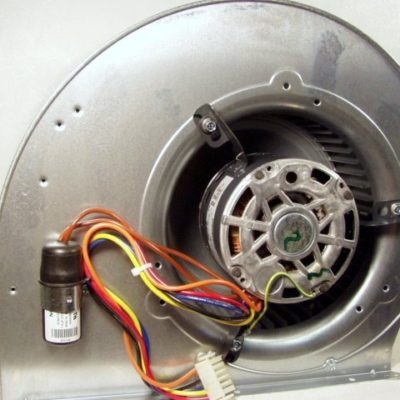

902805 Blower Assembly
$299.45Blower assembly for furnaces with 2-4 ton a/c units. Used mostly on E1EH electric furnaces. Includes 901838 motor, 667252 10×7 blower wheel, 622132 run cap, housing & plug.
-

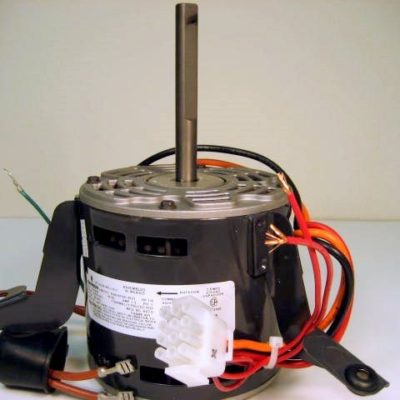

902512 Blower Motor
$267.191/4 hp 2 speed blower motor. Replaces many 1 & 2 speed motors for FE, FEH, FEB & FEY furnaces. 1050 RPM, 1.5 Amps, 240-208V, shaft is 1/2″ x 4″, housing is 5″ diameter x 4.5″ long, CWSE rotation, 3 attached feet. Wiring: orange-common, black-high, red-low, browns-run cap. Requires a 622132 run cap. Replaces 104656000, 620700, 620710, 620720, 621449, 901292, 901293, 901294 & 902889.
-

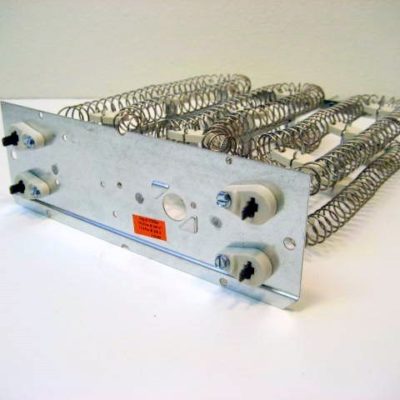

903906 Heating Element 15kw
$241.3115 kw heating element. Assembly number 270004. Front plate measures 9.25″ x 3.0″. 11.25″ deep plus rod which can be trimmed to fit. Limit switch not included.
-

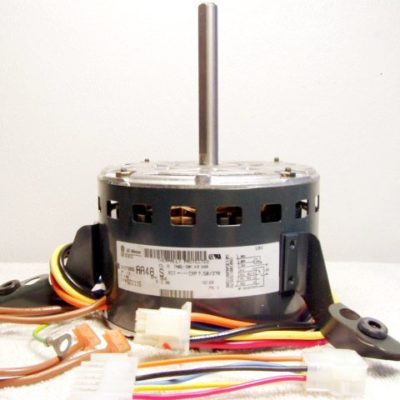

903075 Blower Motor
$218.944 speed blower motor. 240V, 1/3hp, 960rpm, 2.90A. 1/2″ x 4″ shaft size. Motor housing 5.5″ diameter x 4″ deep. Wires: brown to run cap, black-high, blue-medium high, yellow-medium low, red-low. Requires run capacitor 622132 (not included). Replaces 621675, 622115, 622235 & 903908.
-

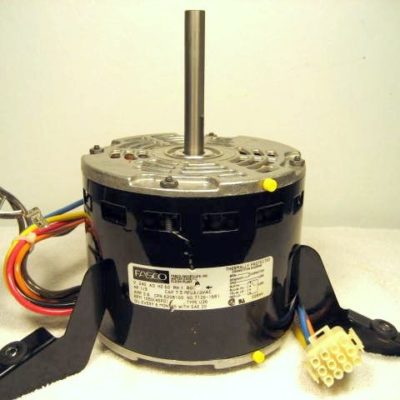

901838 Blower Motor
$217.951/3hp 4-speed motor with plug. 240V, 2.6A, 1050RPM, type U26. Wiring: black-high, blue-med high, yellow-medium low, red-low, browns-run cap. Shaft size 1/2″ x 3.25″. Housing 5.5″ diameter x 4.5″ deep. Requires run cap 622132 (not included). Oil every 6 months with SAE 20. Replaces 620810, 620838 & 901295.
-

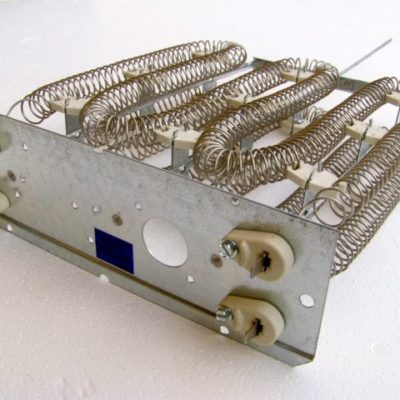

902824 Heating Element 11.6kw
$204.6011.6 kw heating element. Assembly number 498193. Front plate measures 9.25″ x 3.0″. 11.25″ deep plus rod which can be trimmed to fit. Limit switch not included. Replaces 498193, 4981930, 631694, 6316940, 432723, 4327230, 491223 & 4912230.
-

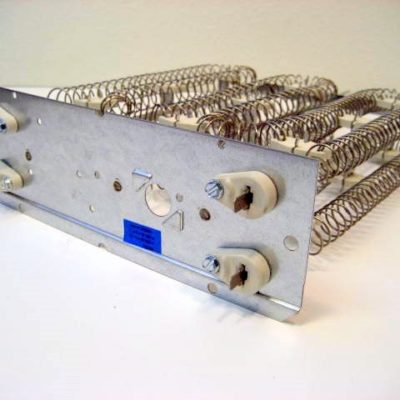

903905 Heating Element 11.6kw
$198.9211.6 kw heating element. Assembly number 270003. Front plate measures 9.25″ x 3.0″. 11.25″ deep plus rod which can be trimmed to fit. Limit switch not included.
-
902823 Heating Element 10.8kw
$196.4410.8 kw heating element. Assembly number 498192. Front plate measures 9.25″ x 3.0″. 11.25″ deep plus rod which can be trimmed to fit. Limit switch not included. Replaces 631693, 6316930, 432722, 4327220, 491222, 4912220 498192 & 4981920.
-
903904 Heating Element 10.8kw
$190.9010.8 kw heating element. Assembly number 270002. Front plate measures 9.25″ x 3.0″. 11.25″ deep plus rod which can be trimmed to fit. Limit switch not included.
-

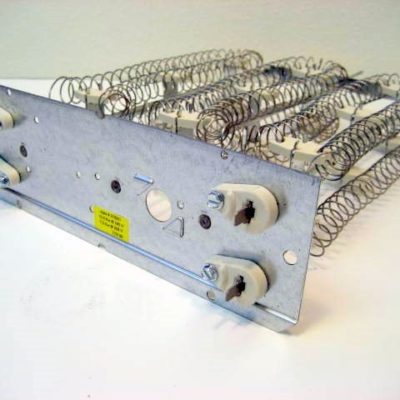

903903 Heating Element 10kw
$190.0510 kw heating element. Assembly number 270001. Front plate measures 9.25″ x 3.0″. 11.25″ deep plus rod which can be trimmed to fit. Limit switch not included.
-
902821 Heating Element 10kw
$176.1710 kw heating element. Assembly number 498191. Front plate measures 9.25″ x 3.0″. 11.25″ deep plus rod which can be trimmed to fit. Limit switch not included. Replaces 631692, 6316920, 432721, 4327210, 491221, 4912210, 498191 & 4981910.
-

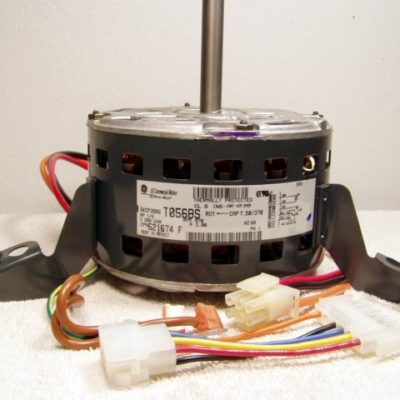

903076 Blower Motor
$158.252 speed blower motor. 1/5hp, 208-240V, 870RPM, 2.0A. Shaft size 1/2″ X 4″. Housing diameter is 5.5″ X 3.25″ deep. Wires: brown to run cap, black-high, red-low. Requires run capacitor 622132 (not included). Replaces 621674.
-

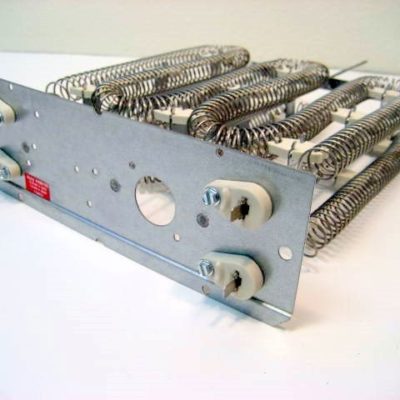

902822 Heating Element 10.4kw
$149.9610.4 kw heating element. Assembly number 498195. Front plate measures 9.25″ x 3.0″. 11.25″ deep plus rod which can be trimmed to fit. Limit switch not included. Replaces 432724, 4327240, 491224 & 4912240.
-
621030 & 3500-3271 Disconnect Assembly
$148.06Disconnect assembly includes plug. Uses four 3″ fuses. Interlock (plug) is no longer available separately. Does not included fuses and mounting screws. If your original disconnect has 4 main wires (not 2) leading to it, you need this kit. Soon to be discontinued. Replaces 104572002, 360950, 620526 & 6205260.
-
621029 Disconnect Assembly
$148.06Disconnect assembly includes plug. Measures 4″ x 5″. Smaller size 2″ fuses fit in the outside, larger 3″ fuses on the inside. Interlock (plug) is no longer available separately. Does not included fuses and mounting screws. Soon to be discontinued. If your original disconnect has 4 main wires (not 2) leading to it, you need this kit. Replaces 360940.
