Generic Furnace Motors

We no longer have a relationship with a parts store. Following a link on this page will take you to Amazon.com to search for it. It may or may not be available depending on availability. This is the best we can do at this time and we hope it helps.

Mobilehomerepair.com is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to Amazon properties including, but not limited to, amazon.com.

Categories

S89-288 multi-hp 4-Speed 230V Motor
$198.30

Emerson 5471 direct drive new furnace Rescue motor, 5-5/8″ diameter x 6-1/16″ long, 4 speed, 208-230V, adjustable to 3/4, 1/2, 1/3, 1/4 or 1/5hp, 1075RPM, 1.7-3.8A, shaft size 1/2″ x 5″, reversible, ball bearing, mounts with belly band (not included), 4 studs on both ends, or 4 screws in shell. 1 year replacement warranty. 3/4hp setting requires a G21-909 run cap (not included), all other hp settings require G21-891, Read general info at top of page.

Check Amazon
S89-287 multi-hp 4-Speed 115V Motor
$194.64

Emerson 5470 direct drive new furnace Rescue motor, 5-5/8″ diameter x 6-1/16″ long, 4 speed, 115V, adjustable to 3/4, 1/2, 1/3, 1/4 or 1/5hp, 1075RPM, 3.1-8.1A, shaft size 1/2″ x 5″, reversible, ball bearing, mounts with belly band (not included), 4 studs on both ends, or 4 screws in shell. 1 year replacement warranty. 3/4hp setting requires a G21-909 run cap (not included), all other hp settings require G21-891, Read general info at top of page.

Check Amazon
S88-561 3/4hp 3-Speed 230V Motor
$178.84

Emerson 8905 direct drive new furnace motor, 5-5/8″ diameter x 5-3/8″ long, 3 speed, 208-230V, 3/4hp, 1075RPM, 4.6A, shaft size 1/2″ x 4″, reversible, sleeve bearing, mounts with belly band (not included) or 4 studs on shaft end, 1 year replacement warranty. Requires run cap G21-891 (not included). Read general info at top of page.

Check Amazon
S89-094 multi-hp 4-Speed 230V Motor
$166.46

Emerson 5461 direct drive new furnace Rescue motor, 5-5/8″ diameter x 4-13/16″ long, 4 speed, 208-230V, adjustable to 1/2, 1/3, 1/4, 1/5 or 1/6hp, 1075RPM, 1.3-3.6A, shaft size 1/2″ x 5″, reversible, sleeve bearing, mounts with belly band (not included), 4 studs on both ends, or 4 screws in shell. 1 year replacement warranty. 1/2hp setting requires a G21-891 run cap (not included), all other hp settings require G21-930, Read general info at top of page.

Check Amazon

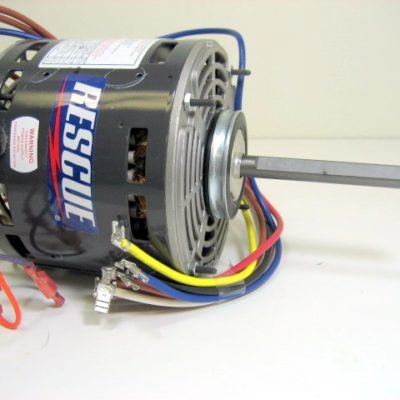

S89-093 multi-hp 4-Speed 115V Motor
$156.78

Emerson 5460 direct drive new furnace Rescue motor, 5-5/8″ diameter x 4-13/16″ long, 4 speed, 115V, adjustable to 1/2, 1/3, 1/4, 1/5 or 1/6hp, 1075RPM, 2.8-7.3A, shaft size 1/2″ x 5″, reversible, sleeve bearing, mounts with belly band (not included), 4 studs on both ends, or 4 screws in shell. 1 year replacement warranty. 1/2hp setting requires a G21-891 run cap (not included), all other hp settings require G21-930, Read general info at top of page.

Check Amazon
S88-549 1/2hp 3-Speed 230V Motor
$142.70

Emerson 1973 direct drive new furnace motor, 5-5/8″ diameter x 4-13/16″ long, 3 speed, 208-230V, 1/2hp, 1075RPM, 4.6A, shaft size 1/2″ x 5″, reversible, sleeve bearing, mounts with belly band (not included) or 4 studs on shaft end, 1 year replacement warranty. Requires run cap G21-933 (not included). Read general info at top of page.

Check Amazon
S89-019 3/4hp Condenser Motor
$136.92

Emerson 1868 new 48 frame condenser fan motor, 5-5/8″ diameter x 4-11/16″ long, 1 speed, 208-230V, 3/4hp, 1075RPM, 4.5A, shaft size 1/2″ x 5″, reversible, sleeve bearing, mounts with belly band (not included) or 4 studs on shaft end, 1 year replacement warranty. Requires run cap G21-891 (not included) or an appropriate dual run cap. Read general info at top of page.

Check Amazon
S88-560 3/4hp 3-Speed 115V Motor
$131.11

Emerson 8904 direct drive new furnace motor, 5-5/8″ diameter x 5-3/8″ long, 3 speed, 115V, 3/4hp, 1075RPM, 9.1A, Shaft size 1/2″ x 4″, reversible, sleeve bearing, mounts with belly band (not included) or 4 studs on shaft end, 1 year replacement warranty. Requires run cap G21-897 (not included). Read general info at top of page.

Check Amazon
S88-503 1/2hp Condenser Motor
$122.70

Emerson 1862 new 48 frame condenser fan motor, 5-5/8″ diameter x 5-1/8″ long, 1 speed, 208-230V, 1/2hp, 1075RPM, 2.9A, shaft size 1/2″ x 5″, reversible, sleeve bearing, mounts with belly band (not included) or 4 studs on shaft end, 1 year replacement warranty. Requires run cap G21-933 (not included) or an appropriate dual run cap. Read general info at top of page.

Check Amazon
S88-544 Blower Motor
$117.70

1/4hp, 1075rpm, 5-5/8″ diameter, 1/2 x 5″ shaft, 115V. This generic 3-speed motor replaces the following Coleman 1-speed motors that are no longer available: 8866-3159, 8866-315, 8866A3159, 8866A315, 7700-3119, 7700-311, 7700A3119, 7700A311, 7710-3119, 7710-311, 024-23071-000, 02423071000, 024-21620-000, 02421620000, 024-21620-700 & 02421620700. Connect to low speed using red and white wires. Connect brown wires to run cap. If motor turns backwards, switch the yellow and orange wires. Ignore all other wires. Requires run cap G21-930. Emerson 1863.

Check Amazon
S88-546 1/3hp 3-Speed 115V Motor
$116.60

Emerson 1864 direct drive new furnace motor, 5-5/8″ diameter x 4-5/16″ long, 3 speed, 115V, 1/3hp, 1075RPM, 5.2A, shaft size 1/2″ x 5″, reversible, sleeve bearing, mounts with belly band (not included) or 4 studs on shaft end, 1 year replacement warranty. Requires run cap G21-933 (not included). Read general info at top of page.

Check Amazon

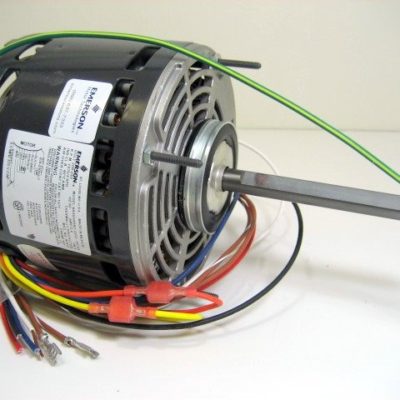

S88-547 1/3hp 3-Speed 230V Motor
$115.29

Emerson 1972 direct drive new furnace motor, 5-5/8″ diameter x 4-5/16″ long, 3 speed, 208-230V, 1/3hp, 1075RPM, 2.4A, shaft size 1/2″ x 5″, reversible, sleeve bearing, mounts with belly band (not included) or 4 studs on shaft end, 1 year replacement warranty. Requires run cap G21-930 (not included). Read general info at top of page.

Check Amazon
S88-545 1/4hp 3-Speed 230V Motor
$111.38

Emerson 1971 direct drive new furnace motor, 5-5/8″ diameter x 4-1/16″ long, 3 speed, 208-230V, 1/4hp, 1075RPM, 1.8A, shaft size 1/2″ x 5″, reversible, sleeve bearing, mounts with belly band (not included) or 4 studs on shaft end, 1 year replacement warranty. Requires run cap G21-930 (not included). Read general info at top of page.

Check Amazon
S88-502 1/3hp Condenser Motor
$110.22

Emerson 1861 new 48 frame condenser fan motor, 5-5/8″ diameter x 4-5/8″ long, 1 speed, 208-230V, 1/3hp, 1075RPM, 2.1A, shaft size 1/2″ x 5″, reversible, sleeve bearing, mounts with belly band (not included) or 4 studs on shaft end, 1 year replacement warranty. Requires run cap G21-933 (not included) or an appropriate dual run cap. Read general info at top of page.

Check Amazon

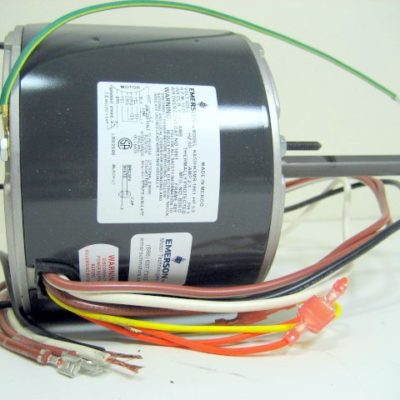

S88-501 1/4hp Condenser Motor
$103.94

Emerson 1860 new 48 frame condenser fan motor, 5-5/8″ diameter x 4-1/8″ long, 1 speed, 208-230V, 1/4hp, 1075RPM, 1.7A, shaft size 1/2″ x 5″, reversible, sleeve bearing, mounts with belly band (not included) or 4 studs on shaft end, 1 year replacement warranty. Requires run cap G21-930 (not included) or an appropriate dual run cap. Read general info at top of page.

Check Amazon
S88-548 1/2hp 3-Speed 115V Motor
$99.00

Emerson 1865 direct drive new furnace motor, 5-5/8″ diameter x 5-1/4″ long, 3 speed, 115V, 1/2hp, 1075RPM, 8.9A, shaft size 1/2″ x 5″, reversible, sleeve bearing, mounts with belly band (not included) or 4 studs on shaft end, 1 year replacement warranty. Requires run cap G21-891 (not included). Read general info at top of page.

Check Amazon
S58-703 Belly Motor Mounting Band.
$20.82

Motor torsion flex mount fits 5.5″ diameter motors. Includes rubbers. 9″ or 10″ mounting centers.

Check Amazon
S58-612 Belly Motor Mounting Band.
$18.95

Motor torsion flex mount fits 5″ and 5.5″ diameter motors. Remove the three plastic sleeves to fit 5.5″ motors. Includes 3 rubbers with inserts. Hole size 1/4″ diameter. Install rubbers into the appropriate hole on mount, then add insert. 9″ and 10″ mounting centers.
