Coleman Electric Furnace Parts
We no longer have a relationship with a parts store. Following a link on this page will take you to Amazon.com to search for it. It may or may not be available depending on availability. This is the best we can do at this time and we hope it helps.
-
3400A321P Blower Motor
$323.391/3 hp 3-speed blower motor for electric furnaces with a/c or heat pump. 208-230V, 60Hz. 1075 RPM, 2.10A. Shaft size is 1/2″ x 3.5″. Housing diameter is 5-5/8″ x 4.75″ deep with a 1-5/8″ knob on end. Total motor length is 9.25″. Wires: Purple-common, black-high, blue-medium, red-low, run cap between purple & brown. 48Y frame. Requires run capacitor 1499-4421 (not included). Replaces 3400-3219, 3600-3239, 3400A3219, 3600A3239, 3400A321P, 1468-2319, 024-19151-000, 024-25287-000, 024-19151-700, 024-25287-700, 024-24504-000 & 024-24504-700. Your price $323.39, or consider purchasing our S88-547 generic motor for $99
-
3118C312P Blower Motor
$259.601/7 hp 2-speed blower motor. 230V, 60Hz, 2.5-2.4 amps, 600-1060 RPM. No run capacitor required. 1/2″ x 2-7/8″ shaft. Housing is 5″ diameter x 3.5″ deep. Molex pins crimped onto the end of the wires. Pins then snap inside a Molex male plug. Order a replacement plug
-

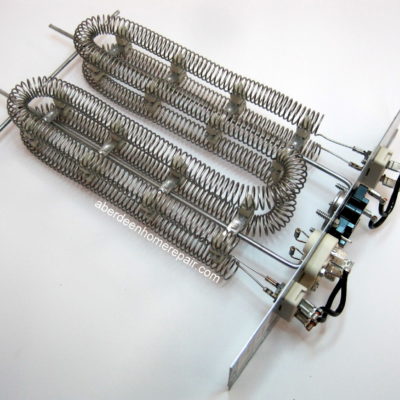

025-41238-000 heating element 11.2KW
$209.10Electric furnace heating element assembly with two 025-41249-000 L200-60F limit switches. 11.2KW, 240V. Front mounting plate measures 10.75″ x 3.25″. Element is 13″ deep. This element is used in the EB12C, EB12D, EB23C & EB23D electric furnaces. Also known as part number 5000-270-503 and 266185.
-

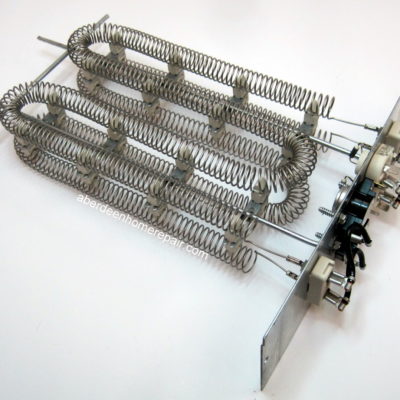

025-41240-000 Heating Element 10.4KW
$199.19Electric furnace heating element assembly with two 025-41249-000 L200-60F limit switches. 5.6KW, 240V. Front mounting plate measures 10.75″ x 3.25″. Element is 13″ deep. This element is used in the EB17C, EB17D, EB23C & EB23D electric furnaces. Also known as part number 5000-270-502 and 266187.
-

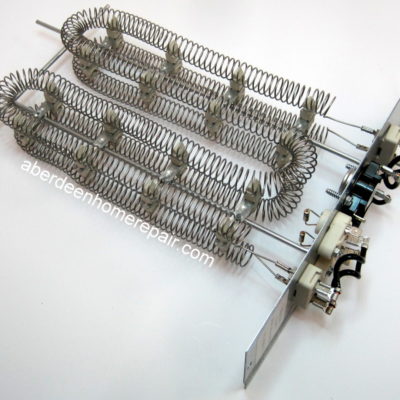

025-41236-000 heating element 9.6KW
$187.90Electric furnace heating element assembly with two 025-41249-000 L200-60F limit switches. 9.6KW, 240V. Front mounting plate measures 10.75″ x 3.25″. Element is 13″ deep. This element is used in the EB10C, EB10D, EB15C, EB15D, EB20C & EB20D electric furnaces. Also known as part number 5000-270-501 and 266182.
-
024-27651-000 Blower Motor
$185.801/3 hp 4-speed blower motor. 240V, 60Hz, 3.1 Amps, 1050RPM. 1/2″ x 4″ shaft. 5.5″ housing diameter x 4″ deep. Red-low, yellow-medium low, blue-medium high, black-high, green-ground, orange & brown to capacitor. Requires run capacitor 1499-4461 (not included). Replaces 1468-243, 1468-243P & 1468-243P/A. Also known as part number 024-27651-000. Your price $185.80, or consider purchasing our S89-094 generic motor
-
S89-250 Blower Motor
$161.553 speed blower motor replaces many 2 speed motors. 1/6hp, 230V, 1.1A, 1075RPM. Shaft size 1/2″ x 5″. Motor diameter 5.5″ x 4″ deep. Requires run cap G21-932. Electrically reversible rotation. Replaces 3120-3129, 3120-312, 3123-3129, 3123-312, 3120A3129, 3120A312, 3123A3129 & 3123A312.
-
1468-120P Blower Motor
$152.28Blower motor for electric furnace without A/C or heat pump. 1/6hp, 1050RPM, 2 speed, 230V, 60Hz, 3.0 Amps. 1/2″ x 4.5″ shaft. 5″ diameter housing x 4.25″ deep. No oiling. Red wire is low, black wires are high, orange is line. No run capacitor required. Rotation is CCWCE. Molex pins crimped onto the end of the wires. Pins then snap inside a Molex male plug. Order a replacement plug
-

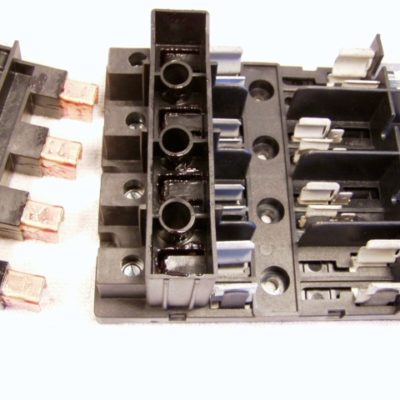

3500-3261 Disconnect Assembly
$148.06Disconnect assembly includes plug. Measures 4″ x 5″. Smaller 2″ size fuses fit in the center, larger 3″ fuses on the outside. Plug is no longer available separately. Does not included fuses and mounting screws. Soon to be discontinued. Replaces 3115-327, 3115-3271, 3400B326, 3400B3261, 3400-326, 3400-3261, 3400A3261, 3400A326, 3500-326. Was $167.25.
-

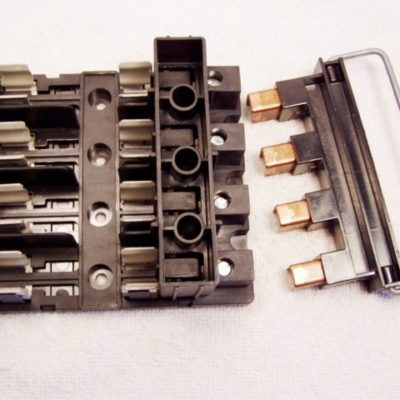

621030 & 3500-3271 Disconnect Assembly
$148.06Disconnect assembly includes plug. Uses four 3″ fuses. Interlock (plug) is no longer available separately. Does not included fuses and mounting screws. If your original disconnect has 4 main wires (not 2) leading to it, you need this kit. Soon to be discontinued. Replaces 104572002, 360950, 620526 & 6205260.
-

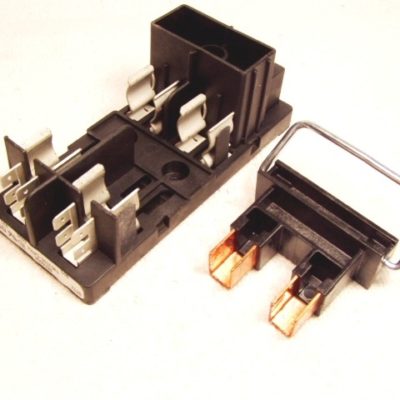

621034 & 3500-3281Disconnect Assembly
$136.61Disconnect assembly includes plug. Uses two 3″ fuses. Interlock (plug) is no longer available separately. Does not included fuses and mounting screws. Soon to be discontinued. Replaces 104572000, 360930, 620522, 6205220, 620540 & 6205400.
-

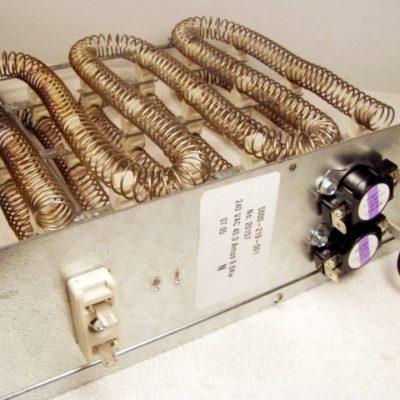

3500-410P/A Heating Element.
$129.00Electric furnace heating element assembly with limit switches. New. 9.6KW, 240V. Front mounting plate measures 10.74″ x 3.25″. Element is 9.75″ deep. Replaces 3500-4101 & 3500-410.
-
025-41239-000 Heating Element 5.6KW
$122.25Electric furnace heating element assembly with 025-41249-000 L200-60F limit switch. 5.6KW, 240V. Front mounting plate measures 10.75″ x 3.25″. Element is 13″ deep. This element is used in the EB17C and EB17D electric furnaces. Also known as part number 5000-269-502 and 266186.
-
3500-412P/A Heating Element
$121.86Electric furnace heating element assembly with limit switches. New. 11.2KW 240V. Front mounting plate measures 10.74″ x 3.25″. Element is 9.75″ deep. Replaces 3500-4121 & 3500-412.
-

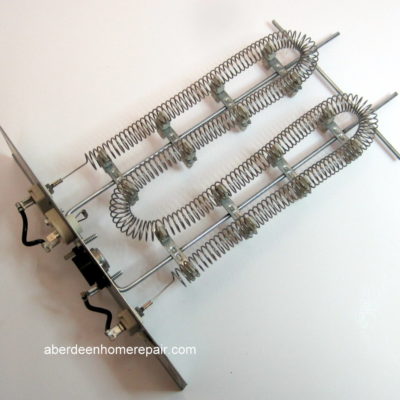

025-41237-000 heating element 4.8KW
$106.49Electric furnace heating element assembly with 025-41249-000 L200-60F limit switch. 4.8KW, 240V. Front mounting plate measures 10.75″ x 3.25″. Element is 13″ deep. This element is used in the EB15C and EB15D electric furnaces. Also known as part number 5000-269-501 and 266184.
-

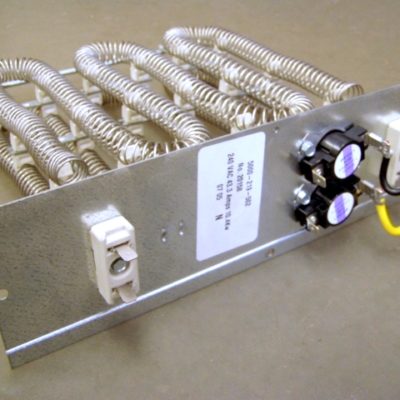

3500-411P/A & 025-41240-000 Heating Element
$97.69Electric furnace heating element assembly with limit switches. New. 10.4KW, 240V. Front mounting plate measures 10.74″ x 3.25″. Element is 9.75″ deep. Replaces 3500-4111 & 3500-411.
-
3500-406P/A Heating Element
$94.35Electric furnace heating element assembly with limit switch. 5.6KW 240V. New. Front mounting plate measures 10.74″ x 3.25″. Element is 9.75″ deep. Replaces 3500-4061 & 3500-406.
-
3500-405P/A Heating Element
$83.86Electric furnace heating element assembly with limit switch. New. 4.8KW, 240V. Front mounting plate measures 10.74″ x 3.25″. Element is 9.75″ deep. Replaces 3500-4051 & 3500-405.
