Exhaust Fans & Parts
Find range hoods, exhaust fans, switches, fan motors, fan blades and more.
We no longer have a relationship with a parts store. Following a link on this page will take you to Amazon.com to search for it. It may or may not be available depending on availability. This is the best we can do at this time and we hope it helps.
Categories
-
PC51-30A Range Hood Almond 30″
$225.00Ventline 18″ x 30″ white range hood vent includes single-speed fan, light and damper. Heavy gauge steel construction. 145cfm. Vents vertical or horizontal via a 3″ x 9.5″ outlet. Exterior vent sold separately. 42″ hood also available.
-

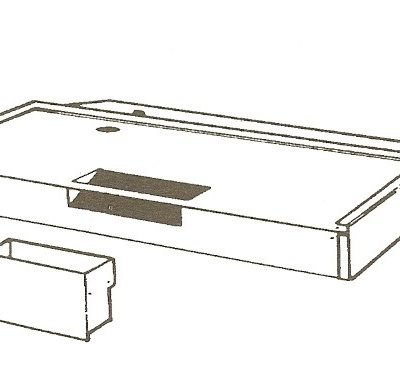

PC51-30W Range Hood White 30″
$225.00Ventline 18″ x 30″ white range hood vent includes single-speed fan, light and damper. Heavy gauge steel construction. 145cfm Vents vertical or horizontal via a 3″ x 9.5″ outlet. Exterior vent sold separately. 42″ hood also available.
-
PR50-30A Range Hood Almond 30″
$225.00Ventline 18″ x 30″ almond range hood vent includes single-speed fan, light and damper. 100cfm. Vents to roof via a 5″ top round vent connection. 42″ hood also available. Roof vent sold separately. White pictured.
-

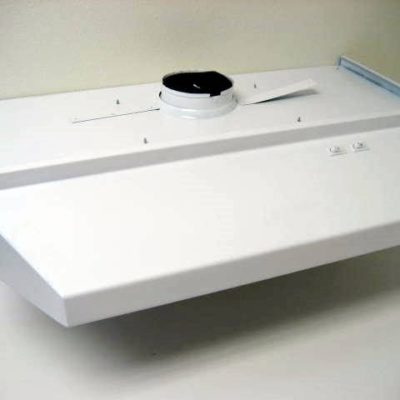

PR50-30W Range Hood White 30″
$225.00Ventline 18″ x 30″ white range hood vent includes single-speed fan, light and damper. 100cfm. Vents to roof via a 5″ top round vent connection. 42″ hood also available. Roof vent sold separately.
-

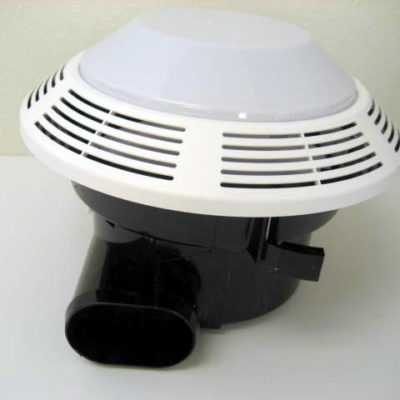

V2280-75 Bath Fan w/ Light
$85.59Ventline 75cfm 120V lighted bath fan with damper and side exhaust. Measures 11″ diameter. Replaces standard 50cfm V2280-50 for more air flow. This can also replace the non-lighted V2270-75 fan by making the opening in the ceiling slightly bigger. Also requires a few more inches of room up inside ceiling. Connects to 3″ flexible ductwork. Click on picture for another view.
-
V2244-50 Bath Fan w/ Light
$85.46Ventline 50cfm 120V lighted bath fan with damper. 7″ diameter exhaust connection, 12-3/8″ diameter white ceiling ring, 8″ long not including lens. Lighted fan will replace the V2262-50 non-lighted fan, but the ceiling opening will need to be enlarged to accomodate the wider ring. 1 electrical connection turns on both single bulb and fan. Exhausts through the roof. Click on picture for another view. 220V version available upon request.
-
BV2215-20 Sidewall Exhaust Fan
$78.00Ventline 100CFM white metal sidewall exterior exhaust fan. Often used over stoves, sometimes used in bathrooms. Measures 11″ x 11″. Pull the chain to open outside cover and start fan. Use only in 2×4 exterior walls (not 2×6″). Replaces V2215-21. Click on picture for another view.
-

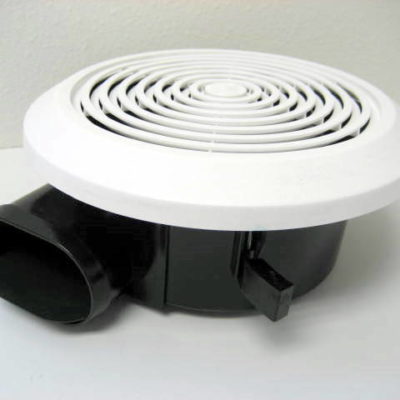

V2270-75 Bath Fan Side Exhaust
$59.64Ventline 75cfm 120V bathroom fan with damper and side exhaust. Replaces standard 50cfm V2270-50 for more air flow. Connects to 3″ flexible ductwork. With cover removed, inside diameter is 7″ and outside diameter is 9-3/16″. Click on picture for another view.
-

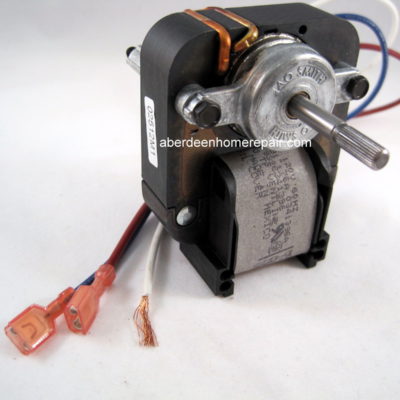

BVD0278-00 Ventline Range Hood Motor
$47.83Ventline 2-speed 120V range hood exhaust fan motor. Model 2S-67J3. Mounting bolts measure 1-7/8″ apart. Motor turns counterclockwise when viewing from the back (which can be reversed). Splined shaft measures 3/16″ diameter x 1-1/4″ long. Pushes onto numerous wheels or blades including those blades which fit on a flat-sided shaft. Three wires – red, white and blue. White is common, red is high, blue is low. Replaces single-speed motor BVD0275 & 2-speed motor BVD0276. When replacing the 1-speed motor, use the white and red wires. Cap the blue wire.
-

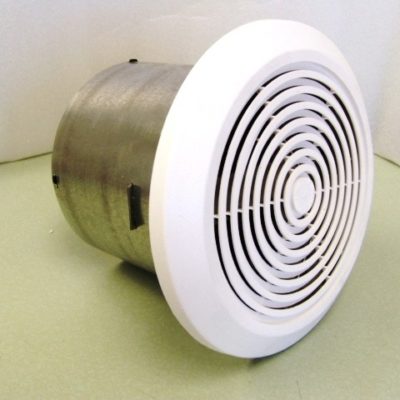

V2262-50 Bath Exhaust Fan
$39.85Ventline bathroom exhaust fan with damper. 120 volts, 50 cfm. Exhaust connection measures 7″ in diameter, 6.5″ deep. White cover measures 9-5/8″ in diameter. Mounts into ceiling, exhausts through the roof. Click on picture for another view.
-

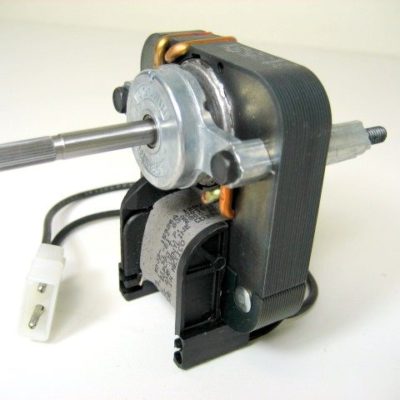

X89-547 Bath Fan Motor Kit 50cfm
$37.5750cfm 120V bathroom fan replacement motor with 2 prong plug. Includes a free blower wheel. Mounting bolts measure 1-7/8″ apart. Motor turns clockwise when viewing from the back. Splined shaft measures 3/16″ diameter x 1-5/8″ long. Pushes onto numerous wheels or blades including those blades which fit on a flat-sided shaft. Wheel measures 4-9/16″ diameter x 1-1/8″ tall with a center hole slight smaller than 3/16″. Fits many Broan, Nutone and other brands of bath fans. Click on picture for enlarged view. Also known as part number 99080245 & S97012041.
-
BCD0390-00 Bath Fan Motor 75cfm
$35.4375cfm 120V bathroom exhaust fan motor for the V2240-50 and V2262-50 bath fans. 3250RPM. Used as an ugrade to add more air flow. Mounting bolts measure 1-7/8″ apart. Motor turns clockwise when viewing from the back. Splined shaft measures 3/16″ diameter x 1-1/4″ long. Pushes onto numerous wheels or blades including those blades which fit on a flat-sided shaft.
-
BCD0388 Bath Fan Motor 50cfm
$35.4350cfm 120V bathroom fan replacement motor for the V2244-50 and V2262-50. 2800RPM. Used as an ugrade to add more air flow. Mounting bolts measure 1-7/8″ apart. Motor turns clockwise when viewing from the back. Splined shaft measures 3/16″ diameter x 1-1/4″ long. Pushes onto numerous wheels or blades including those blades which fit on a flat-sided shaft.
-
BVC0369-00 Bath Fan Motor 75cfm
$35.0075cfm 120V bathroom exhaust fan motor for the V2270-75 and V2280-75 bath fans with side exhaust. 3-prong plug with 2 male and 1 female pins. Mounting bolts measure 1-7/8″ apart. Motor turns counterclockwise when viewing from the back. Splined shaft measures 3/16″ diameter x 1-1/4″ long. Pushes onto numerous wheels or blades including those blades which fit on a flat-sided shaft.
-

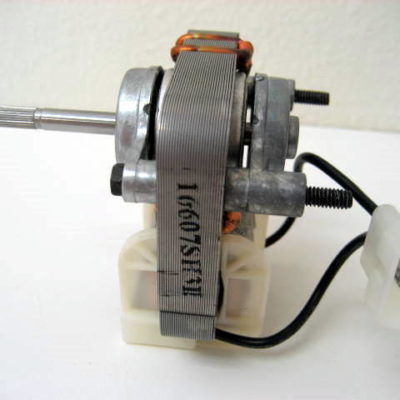

BVC0367-00 Bath Fan Motor 50cfm
$33.8650cfm bathroom exhaust fan motor for the V2270-50 and V2280-50 bath fans with side exhaust. 2850RPM. 2-prong plug. Mounting bolts measure 1-7/8″ apart. Motor turns counterclockwise when viewing from the back. Splined shaft measures 3/16″ diameter x 1-1/4″ long. Pushes onto numerous wheels or blades including those blades which fit on a flat-sided shaft.
-

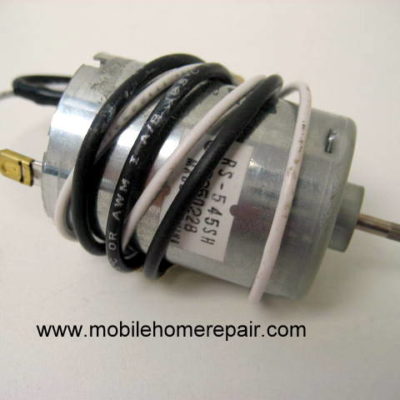

BVD0218-00 Ventline 12V Motor
$30.4812 volt motor for various RV vents. 1 speed. Shaft measures 1/2″ x 3/64″. Motor housing is 1-1/8″ diameter x 1.5″ long.
-

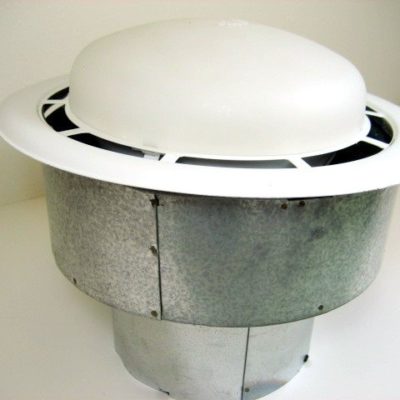

VA0505-01 Bath Fan Roof Vent 1″
$29.20Replacement roof vent for the above lighted and non-lighted bath fans. Extends 9.5″ above roof line. 7.25″ diameter pipe extends down 1″ into attic.
-
VA0505-02 Bath Fan Roof Vent 5″
$29.00Replacement roof vent for the above lighted and non-lighted bath fans. Extends 9.5″ above roof line. 7.25″ diameter pipe extends down 5″ into attic.
